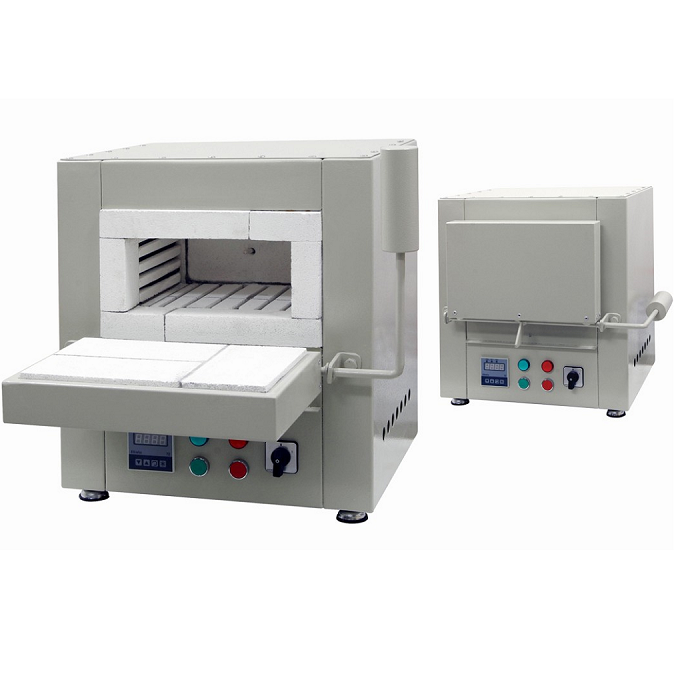

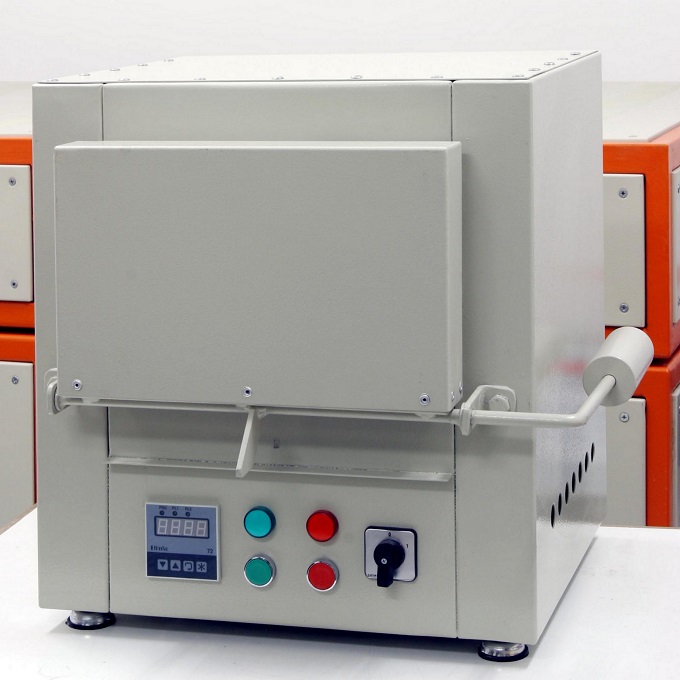

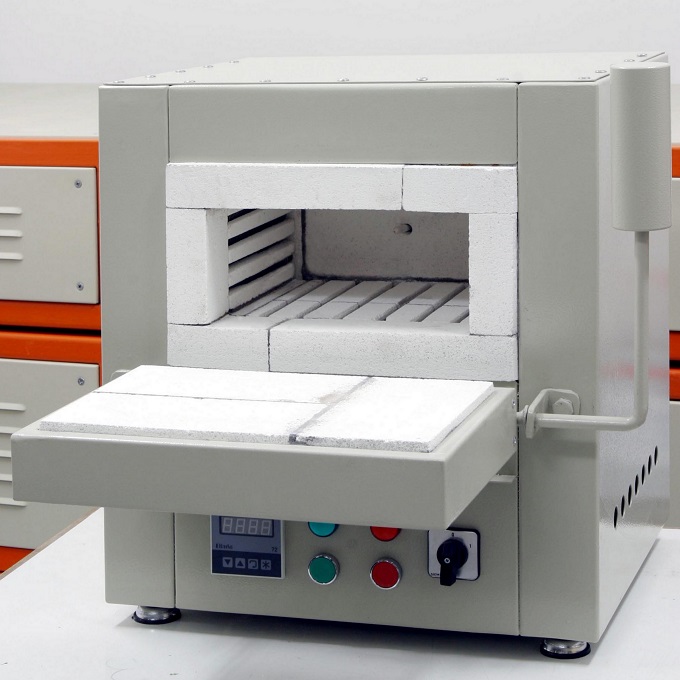

Bead-Jewelry Group, Technical Specification of Enameling Kilns
Area of Use
| - In production of jewelry made of silver and gold,
- Annealing and hardening of beads,
- Ceramic works.
|
Max. Temperature
| 1000ºC
|
Temperature Sensor Type
| K Tipi (NiCr-Ni)
|
Temperature Control* and
Programming Device | Febris (Standards)
Click on the link for optional control device.
|
| Temperature Control | Single zone control
|
| Power Control | Contactor (standard)
SSR - Solid state Relay (optional)
|
Heating Surfaces
| Two side walls + base
|
Heating Elements
| Spiral shaped heater elements, Kanthal A1 qualit
|
Heat Insulation
| Light refractory bricks |
Cooling
| Natural cooling / Free cooling |
Door
| Manual
|
Main Body
| Folded steel plate
|
Color*
| Beige (RAL-7075)
|
Electrical Connection
| Single Phase + Neutral + Ground
|
Electrical Cable
| All models are delivered with CE norm plug and cable |
For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the kiln is reflected to the price.
Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself....
Bead-Jewelry Group, Price List of Enameling Kilns
| Order Code | Price
For 1000 ºC
[EURO]
|
| ECFL 002 | 565,- |
| ECFL 008 | 765,- |
Terms of PaymentAll prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.
Delivery Condition
Our products are delivered from our workplace address.
Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
