BEAD-JEWELRY KILNS

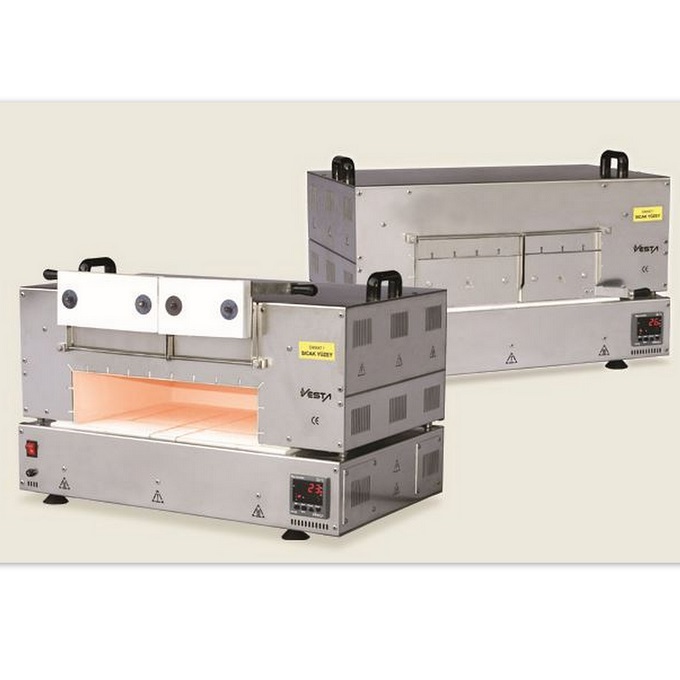

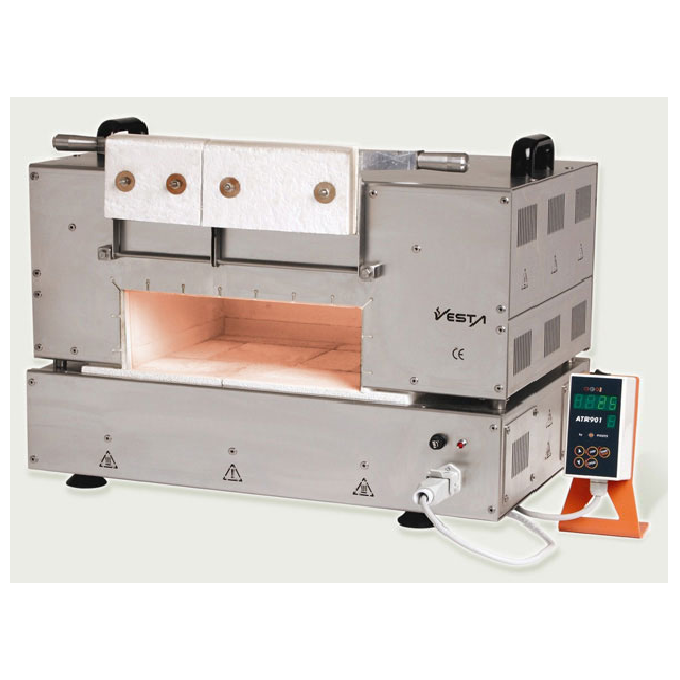

Glass Bead Annealing Kilns

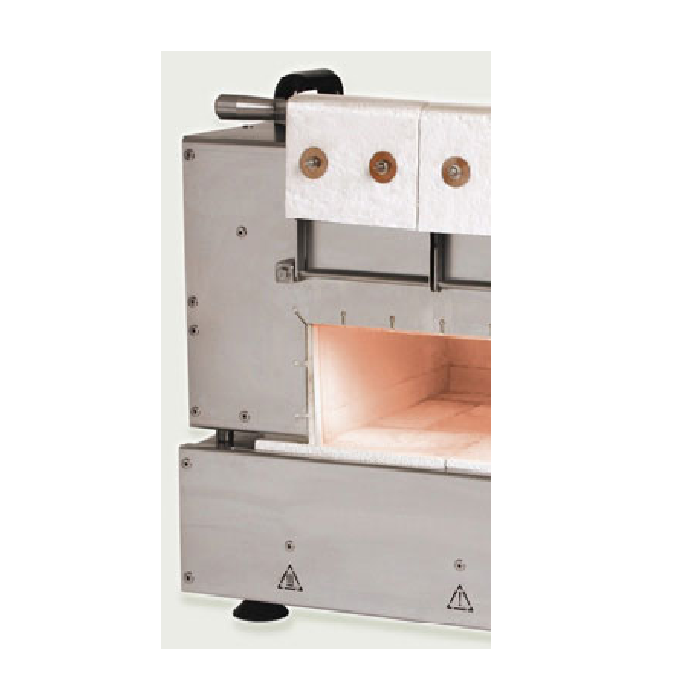

Bead Annealing Furnaces allow you to easily and safely place your beads with their practical doors which can be opened easily and it is closes with their own weight. All you have to do is gently lift the door up.

Bead annealing furnaces are compatible with household electricity. Maximum temperature capacities are 600ºC. Heating is provided from the ceiling of the oven. Resistance wires are placed in quartz tubes to ensure a homogeneous heat distribution by radiation in the furnace.

Depending on the selected temperature controller, the oven temperature values can be programmed. Thus, the pre-stressed beads formed by open flame are allowed to cool under control.

All bead annealing furnaces are bench type and are available in dot patterned stainless steel body for decorative appearance.

Bead-Jewelry Group, Glass Bead Annealing Kilns
Order CodeInternal Dimensions
~(W x D x H)		Power
Electrical Connection
[~]
GBK/INX 25/0075/06
25 x 30 x 10 cm~ 1.5 kW~7 A / 220 V
GBK/INX 30/0120/0630 x 40 x 10 cm~ 2.0 kW~10A / 220 V
GBK/INX Cust
according to the customer requirements.
Bead-Jewelry Group, Technical Specification of Glass Bead Annealing Kilns
Area of Use
Cam boncuk tavlama işlemleri
Max. Temperature
600ºC
Temperature Sensor Type
K Tipi (NiCr-Ni)
Temperature Control* and
Programming Device		Pixsys ATR 902 (15 Programs, 8 Steps)
Click on the link for optional control device.
Temperature ControlSingle zone control
Power ControlContactor (standard)
SSR - Solid state Relay (optional)
Heating Surfaces
Celing
Heating Elements
With resistance wires, which are placed in quartz tubes for homogeneous radiation effect.
Heat Insulation
Light refractory bricks and high density ceramic fiber
Cooling
Natural cooling / Free cooling
Door / Cover
Manual
Main Body
Folded stainless steel plate
Electrical Connection
Single Phase + Neutral + Ground
Electrical Cable
All models are delivered with CE norm plug and cable
For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the kiln is reflected to the price.
...




Bead-Jewelry Group, Price List of Glass Bead Annealing Kiln
Order CodePrice
[EURO]
GBK/INX 25/0075/06565,-
GBK/INX 30/0120/06765,-
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
