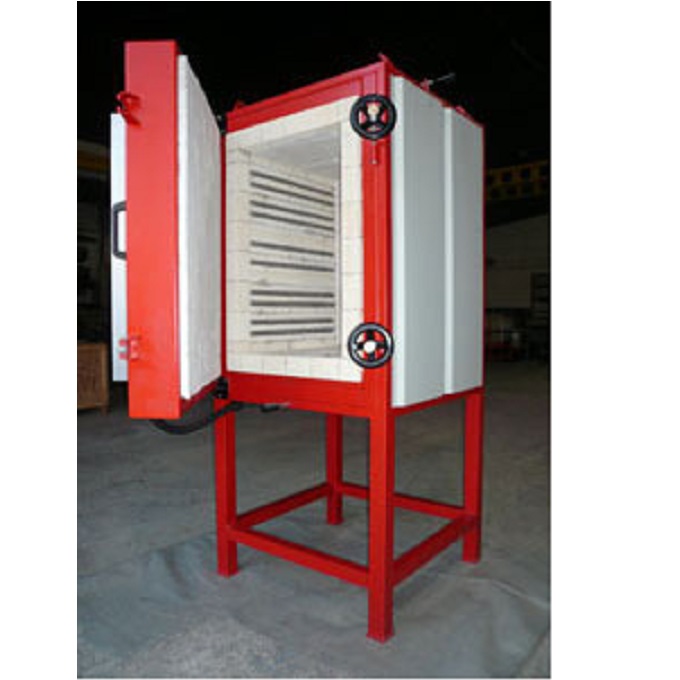

Standard Series Front Loading Hobby Ceramic Kilns

It is ideal for those who will be using the kiln for the first time.

Electric kilns in this group are available with 1200 ºC and 1300 ºC temperature options.

The 1200ºC electric kilns are suitable for ceramic, decor, pottery and tile firing.

The 1300ºC electric kilns are suitable for porcelain, ceramic, decor, pottery and tile firings.

In hobby group, the front loading electric kilns are offered with 50 lt, 64 lt, 80 lt and 100 lt capacities. For capacities larger than those volumes, please visit to our school group and studio group ceramic kilns.

In terms of loading and unloading, front loading electrical kilns are more ergonomic than top loading electric kilns. In terms of portability, it is weaker than the top loading electric furnaces.

For detailed information please visit to the "Technical Specifications" tab.

TYPES & MODEL
SELECTION
TECHICAL
FEATURES
ACCESSORIES
SPARE PARTS
PRICE LIST
PAYMENT TERMS

Ceramic Hobby Group, Standard Series Front Loading Electric Kilns

Order Code	Volume ~V	Internal Dimensions ~(W x D x H)	Outer Dimensions with Support ~(W x D x H)	Weight ~kg	Power For 1200 ºC ~kW	Power For 1300 ºC ~kW
ECFL 50	50 lt	37 x 37 x 37 cm	98 x 87 x160 cm	210 kg	4,0 kW	4,0 kW
ECFL 64	64 lt	40 x 40 x 40 cm	101 x 90 x 160 cm	230 kg	4,0 kW	5,0 kW
ECFL 80	80 lt	40 x 40 x 50 cm	101 x 90 x 170 cm	255 kg	5,0 kW	6,0 kW
ECFL 100	100 lt	45 x 45 x 50 cm	106 x 95 x 170 cm	265 kg	6,0 kW	7,5 kW
ECFL Cust	according to the customer requirements.

...

Ceramic Hobby Group, Technical Specifications of Standard Series Front Loading Electric Kilns

For the selection of different temperature control equipment, please vised the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.

Kiln Operating Materials

Cordierite plates are used as auxiliary equipment in the kilns.

If requested, the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports

Cordierite Plate I: 370 mm x 370 mm x 15 mm

Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm

Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies

The following maintenance and repair materials are available upon request.

Ceramic fiber adhesive,

Brick adhesive,

Resistance wire (Kanthal A1)

Ceramic Hobby Group, Price List of Standard Series Front Loading Electric Kilns.

Order Code	Volume ~V	Price For 1200 ºC [Euro]	Price For 1300 ºC [Euro]
ECFL 50	50 lt	1.450,-	1.870,-
ECFL 64	64 lt	1.550,-	1.970,-
ECFL 80	80 lt	1.650,-	2.070,-
ECFL 100	100 lt	1.850,-	2.270,-
ECFL Cust	according to the customer requirements.

Terms of Payment

All prices are ex-factory.

VAT is not included in the prices.

Optional choices are not included in the prices

Other payments such as transportation and customs are not included in the prices.

Half of the total order price is received in advance before the production of the kiln.

Delivery Condition

Our products are delivered from our workplace address.

Warranty

The warranty period is 2 (two) years.

Faults caused by user or transportation are not covered by the warranty.

PRODUCT SUPPORT

Product Code

Name Surname

Phone

Message

Front Loading Electric Kilns

Front Loading

PRODUCTS

CERAMIC HOBBY KILNS

Standard Series | Front Loading

Area of use / Application area	Firing biscuits, glaze and decor in ceramic, pottery and tile production	Firing biscuits, glaze and decor in porcelain, ceramic, pottery and tile production.
Max. temperature	1200 ºC	1300 ºC
Temperature sensor type	K Tipi (NiCr-Ni)	S Tipi (PtRh-Pt)

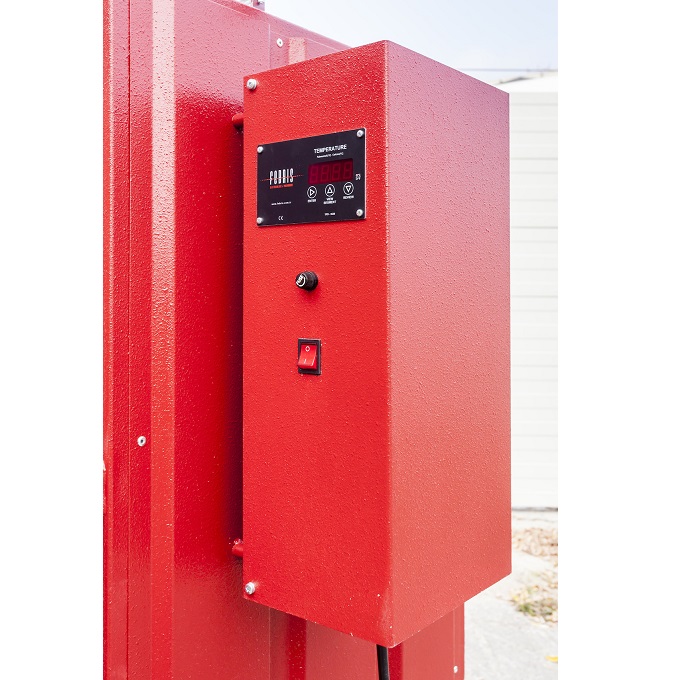

Temperature Control and Programming Device	Febris TPD 3539 (4 programs, 8 steps) Click on the link for optional control device	Febris TPD 8623 (6 programs, 8 steps) Click on the link for optional control device
Temperature Control	Single zone control (standard) Multi-zone controlled (optional)	Single zone control (standard) Multi-zone controlled (optional)
Power Control	Contactor (standard) SSR - Solid State Relay (optional)	Contactor (standard) SSR - Solid State Relay (optional)
Heating surfaces	Two side walls + base	Two side walls + base

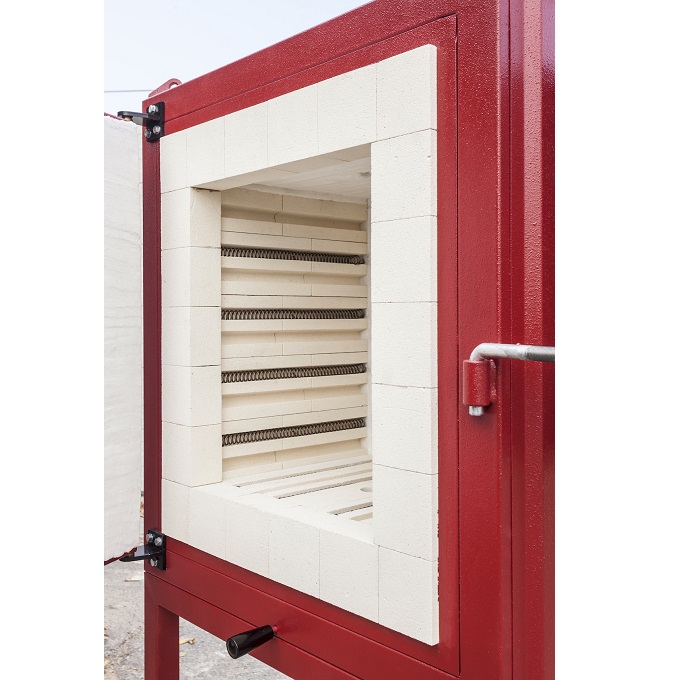

Heating elements	Spiral shaped heater elements, Kanthal A1 quality.	Spiral shaped heater elements, Kanthal A1 quality.
Heat insulation	Heating surfaces with light refractory bricks, Other surfaces are made of ceramic fiber Z Block	Heating surfaces with light refractory bricks, Other surfaces are made of ceramic fiber Z Block
Cooling	Natural cooling with manual controlled chimney	Natural cooling with manual controlled chimney

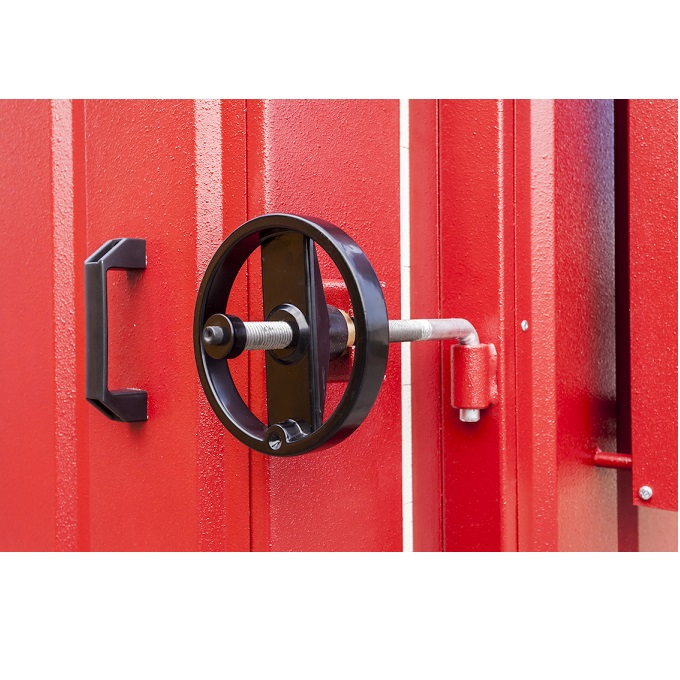

Door	Manual / with manpower	Manual / with manpower
Main body	Welded steel construction	Welded steel construction
Color	Industrial rapid paint, Beige (RAL-7035) + Red (RAL-3001) For different colors, please contact with company.	Industrial rapid paint, Beige (RAL-7035) + Red (RAL-3001) For different colors, please contact with company.
Electrical connection	Single Phase + Neutral + Ground (up to 5.5 kW) Three Phase + Neutral + Ground (above 5.5 kW)	Single Phase + Neutral + Ground (up to 5.5 kW) Three Phase + Neutral + Ground (above 5.5 kW)
Electrical Cable	All models are delivered with CE norm plug and cable.	All models are delivered with CE norm plug and cable.
Security	Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.	Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
Portability	All top-loading electric furnaces of this series are manufactured with wheel as standard.	All top-loading electric furnaces of this series are manufactured with wheel as standard.
