CERAMIC HOBBY KILNS

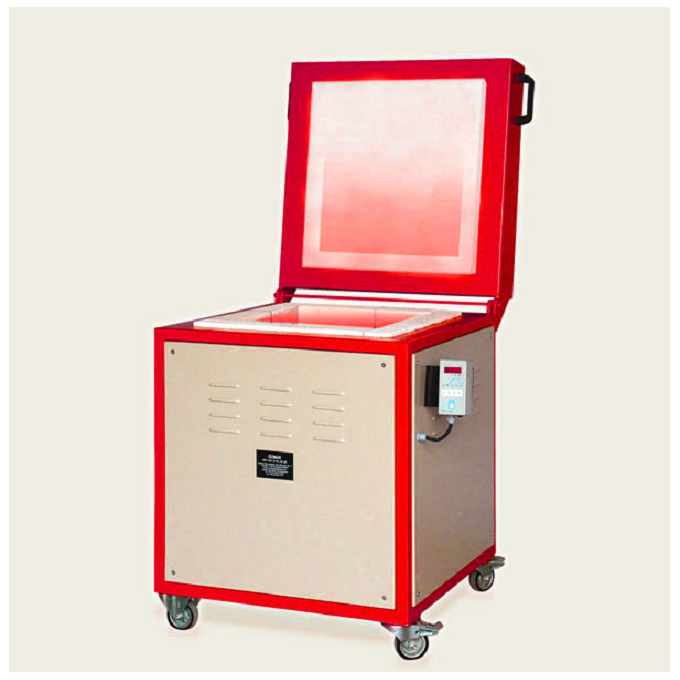

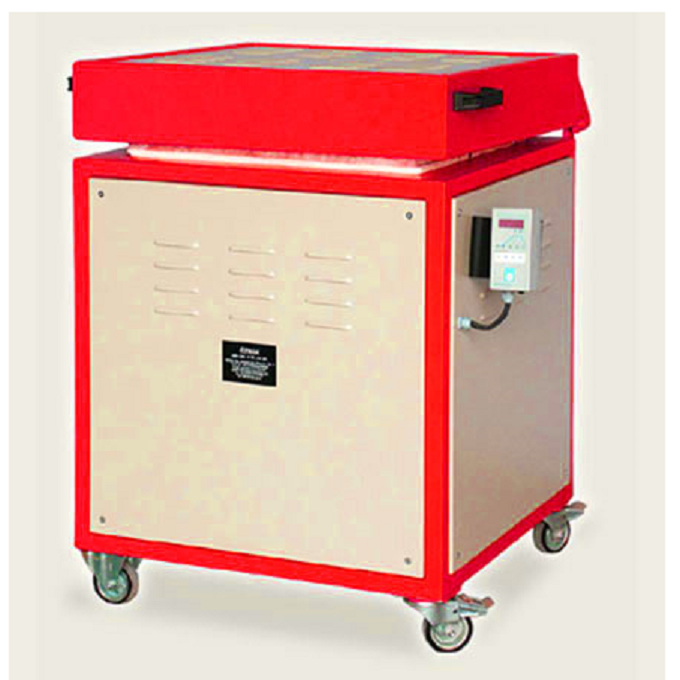

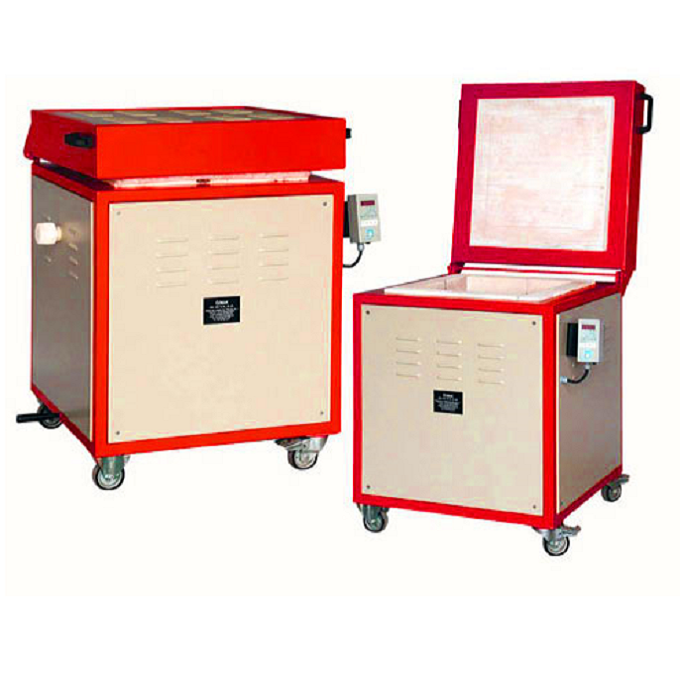

Top Loading Electric Kilns

Top-loading ceramic electric kilns are suitable for beginners and those commencing ceramic and porcelain production.

All top-loading electric kilns up to 5.5 kW can be used with household electricity, and all connections are installed to suit the infrastructure of your home.

Our top loading ceramic kilns are offered with two different temperature alternatives, either 1100 ºC or 1300 ºC depending on ceramic and porcelain applications.

In hobby group, top loading electrical ceramic kilns are offered with 50 lt, 64 lt and 80 lt capacities. For 100 lt please visit school section. For the capacity bigger than 100 lt, please contact us.

All our electric ceramic kilns with top loading are manufectured with wheels as standard, therefore its mobility is better than front-loading kilns.
Ceramic Hobby Group, Top Loading Electric Kilns,
Order Code
Volume

~V
Internal Dimensions

~(W x D x H)
Outer Dimensions

~(W x D x H)
Power
For 1100 ºC
~kW
Power
For 1300 ºC
~kW
ECFL 5050 lt
37 x 37 x 37 cm
73 x 73 x 73 cm
3.5 kW
4.0 kW
ECFL 64
64 lt
40 x 40 x 40 cm
76 x 76 x 83 cm
4.0 kW
5.0 kW
ECFL 8080 lt
40 x 40 x 50 cm
76 x 76 x 93 cm
5.0 kW6.0 kW
ECFL Cust
according to the customer requirements
...
Ceramic Hobby Group, Technical Specifications of Top Loading Electric Kilns.
Area of Use /
Application Area
Firing biscuits, glaze and decor
in ceramic, pottery and tile production
Firing biscuits, glaze and decor
in  porcelain, ceramic, pottery and tile production.
Max. Temperature
1100 ºC
1300 ºC
Temperature Sensor TypeK Type (NiCr-Ni)
S Type (PtRh-Pt)
Temperature Control* and
Programming Device		Febris TPD 3539 (4 programs, 8 steps)
Click on the link for optional control device		Febris TPD 8623(6 programs, 8 steps)
Click on the link for optional control device
Temperature ControlSingle zone control (standard)
Multi-zone controlled (optional)		Single zone control (standard)
Multi-zone controlled (optional)
Power ControlContactor (standard)
SSR - Solid State Relay (optional)		Contactor (standard)
SSR - Solid State Relay (optional)
Heating Surfaces
 Two side walls + base
Two side walls + base
Heating Elements
 Spiral shaped heater elements, Kanthal A1 quality.
Spiral shaped heater elements, Kanthal A1 quality.
Heat Insulation
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Cooling
Natural cooling with manual controlled chimneyNatural cooling with manual controlled chimney
DoorManual / with manpowerManual / with manpower
Main body
Welded steel constructionWelded steel construction
Color**Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.		Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.
Electrical Connection
Single Phase + Neutral + Ground (up to 5.5 kW)
Three Phase + Neutral + Ground (above 5.5 kW)
 Single Phase + Neutral + Ground (upto 5.5 kW)
Three Phase + Neutral + Ground (above 5.5 kW)
Electrical CableAll models are delivered with CE norm plug and cable. All models are delivered with CE norm plug and cable.
SecurityOptionally, when the kiln door is open, a power switch switches off the energy of the heating elements.Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
 PortabilityAll top-loading electric kilns of this series are manufactured with wheel as standard.All top-loading electric kilns of this series are manufactured with wheel as standard.

All top-loading electric kilns up to 5.5 kW can be used with household electricity.

*For the selection of different temperature control equipment, please click the "temperature controllers" tab. Any changes in the control device of the kiln is reflected to the price.

**Different colors can be selected from the colors we have in stock and does not affect the price of the kiln. In addition, as long as paint is supplied by the Client, we can paint the kilns other colours.
...
...
Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to our offer separately.

Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies
The following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Ceramic Hobby Group, Price List of Top Loading Electric Kilns
Order Code
Volume

~V
Price
For 1100 ºC
[EURO]
Price
For 1300 ºC
[EURO]
ECFL 5050 lt
1.630,-
1.990,-
ECFL 64
64 lt
1.690,-
2.080,-
ECFL 8080 lt
1.800,-
2.200,-
ECFL Cust
according to the customer requirements
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
