CERAMICS SCHOOL KILNS

Rainbow Series | Front Loading

Rainbow series is a front loading electric ceramic kilns with new technical features. Ideal for professional work.

Unlike the standard series front loading electric ceramic kilns, the rainbow series kilns are made of light refractory bricks in all surface except the ceiling.  Multi zone temperature control is standard in rainbow series.

Rainbow series electric kilns are only available with a temperature of 1300 ºC. Rainbow series is ideal for baking biscuits, glaze and decor in the production of tiles, pottery, ceramics and porcelain.

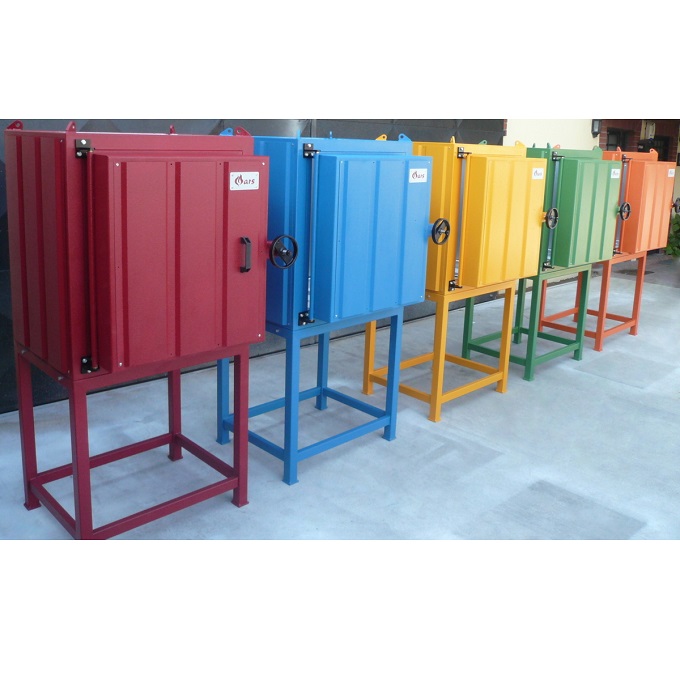

Rainbow Series is available in five different colors: yellow, red, blue, orange and green.

it is ergonomic in terms of loading and unloading.

For further information, please click "Technical Features".
Ceramic School Group, Rainbow Series Front Loading Electric Kilns
Order Code
 Hacim

~V
Internal Dimensions

~(W x D x H)
Outer Dimensions with Support
~(W x D x H)
Weight

~kg		Temperature

ºC
Power

~kW
ECFL 150150 lt50 x 50 x 60 cm111 x 100 x 185 cm360 kg1300ºC11.0 kW
ECFL 200200 lt50 x 60 x 67 cm111 x 110 x 185 cm405 kg1300ºC14.5 kW
ECFL 250250 lt50 x 60 x 85 cm111 x 110 x 185 cm445 kg1300ºC15.5 kW
ECFL 300
300 lt
50 x 90 x 67 cm
111 x 140 x 185 cm500 kg1300ºC20.0 kW
ECFL Cust
according to the customer requirements.
...
Ceramic School Group, Technical Specifications of  Rainbow Series  Front Loading Electric Kilns
Area of use /
Application area
Firing biscuits, glaze and decor
in  porcelain, ceramic, pottery and tile production.
Max. temperature
1300ºC
Temperature sensor typeS Tipi (PtRh-Pt)

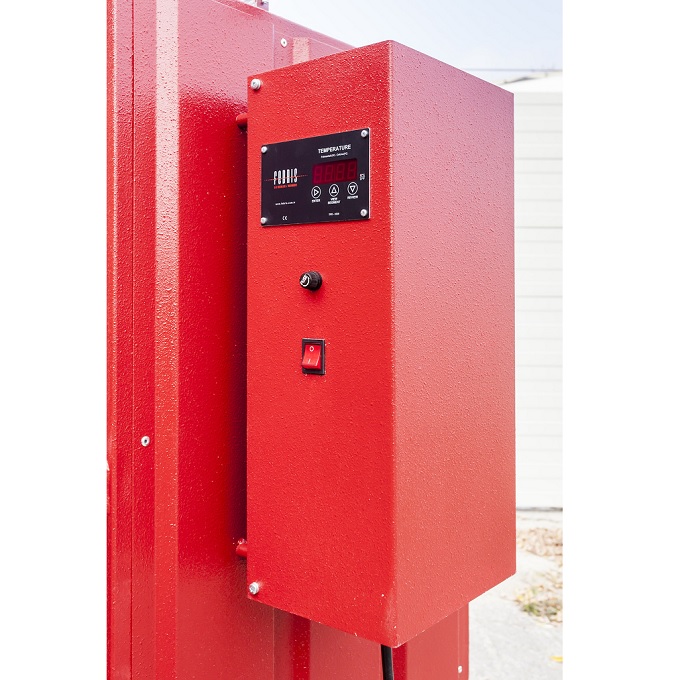

Temperature Control and
Programming Device		Febris TPD 8623(6 programs, 8 steps)
Click on the link for optional control device
Temperature ControlSingle zone control (standard)
Multi-zone controlled (optional)
Power ControlContactor (standard)
SSR - Solid State Relay (optional)
Heating surfaces
Heating from three surfaces ; two side walls + base (standard)
Heating from five or four surfaces (optional)
Heating elements
Spiral shaped heater elements, Kanthal A1 quality.
Heat insulation
All surfaces with light refractory bricks,
Except ceiling surfaces are made of ceramic fiber Z Block
Cooling
Natural cooling with manual controlled chimney (standard),
Automatic chimney (optional)

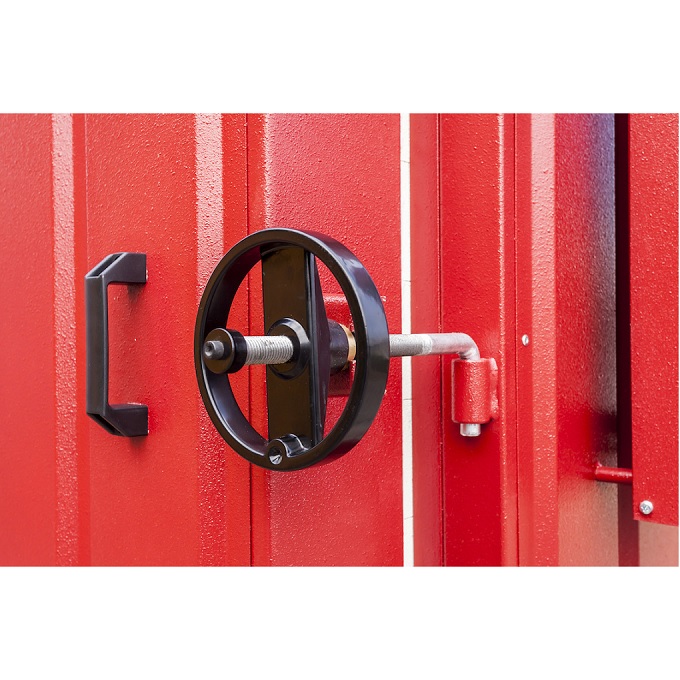

DoorManual / with manpower
Main body
Welded steel construction
ColorColor option ; Green (RAL- 6010), Yellow ( RAL-1007), Orange ( RAL - 2010), Blue (RAL - 5019)
For different colors, please contact with company.
Electrical connection
Single Phase + Neutral + Ground (upto 5,5 kW)
Three Phase + Neutral + Ground (above 5,5 kW)

Cable
 All models are delivered with CE norm plug and cable.
SecurityOptionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
PortabilityTo be able to move the kiln, depending on the weight of kilns, heavy duty handling equipment should be used.
For the selection of different temperature control equipment, please visit the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...

Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies
The following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Ceramic School Group, Price List of Rainbow Series Front Loading Electric Kilns
Order Code
Volume

~V		Price
For 1300 ºC
[EURO]
ECFL 150150 lt2.920,-
ECFL 200200 lt3.220,-
ECFL 250250 lt3.380,-
ECFL 300
300 lt
3.780,-
ECFL Cust
according to the customer requirements.
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
