CERAMICS SCHOOL KILNS

Standard Series | Front Loading

It is ideal for small workshop.

Electric kilns in this group are available with 1200 ºC and 1300 ºC temperature options. The 1200ºC electric kilns are suitable for ceramic, decor, pottery and tile firing. The 1300ºC electric kilns are suitable for porcelain, ceramic, decor, pottery and tile firings.

In School group, the front loading electric kilns are offered with 150 lt, 200 lt, 250 lt and 300 lt capacities. For capacities larger than those volumes, please visit to our studio group ceramic kilns.

In terms of loading and unloading, front loading electrical kilns are more ergonomic than top loading electric kilns.

For detailed information please visit to the "Technical Specifications" tab.

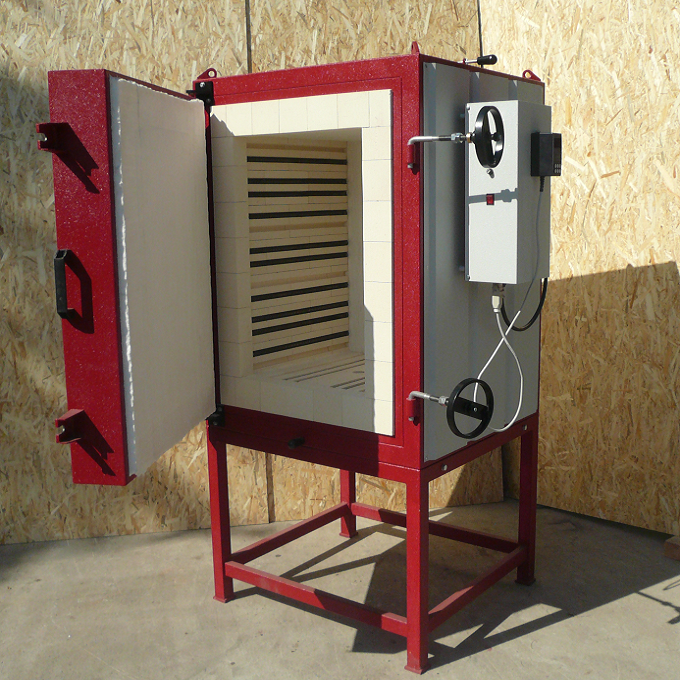

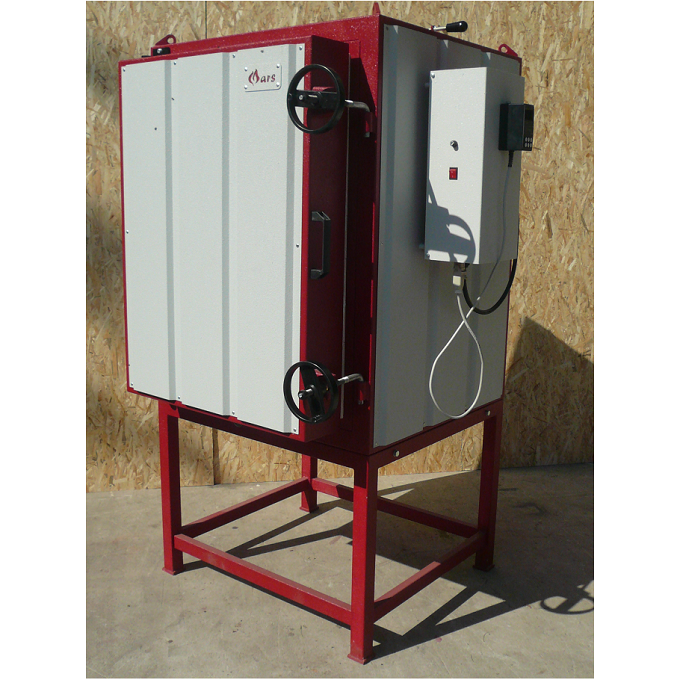

Ceramic School Group, Standard Series Front Loading Electric Kilns
Order Code
Volume

~V
Internal Dimensions

~(W x D x H)
Outer Dimensions
with Support
~(W x D x H)		Weight

~kg		Power
For 1200 ºC
~kW
Power
For 1300 ºC
~kW
ECFL 150
150 lt
50 x 50 x 60 cm111 x 100 x 185 cm310 kg7.5 kW11.0 kW
ECFL 200
200 lt
50 x 60 x 67 cm111 x 110 x 185 cm

375 kg

 		11.0 kW14.5 kW
ECFL 250
250 lt
50 x 60 x 85 cm111 x 110 x 185 cm

390 kg

12.0 kW15.5 kW
ECFL 300
300 lt
50 x 90 x 67 cm
111 x 140 x 185 cm350 kg16.5 kW
20.0 kW
ECFL Cust
according to the customer requirements.
...
Ceramic School Group, Technical Specifications of  Standard Series  Front Loading Electric Kilns
Area of use /
Application area
Firing biscuits, glaze and decor
in ceramic, pottery and tile production
Firing biscuits, glaze and decor
in  porcelain, ceramic, pottery and tile production.
Max. temperature
1200 ºC
1300 ºC
Temperature sensor typeK Tipi (NiCr-Ni)
S Tipi (PtRh-Pt)

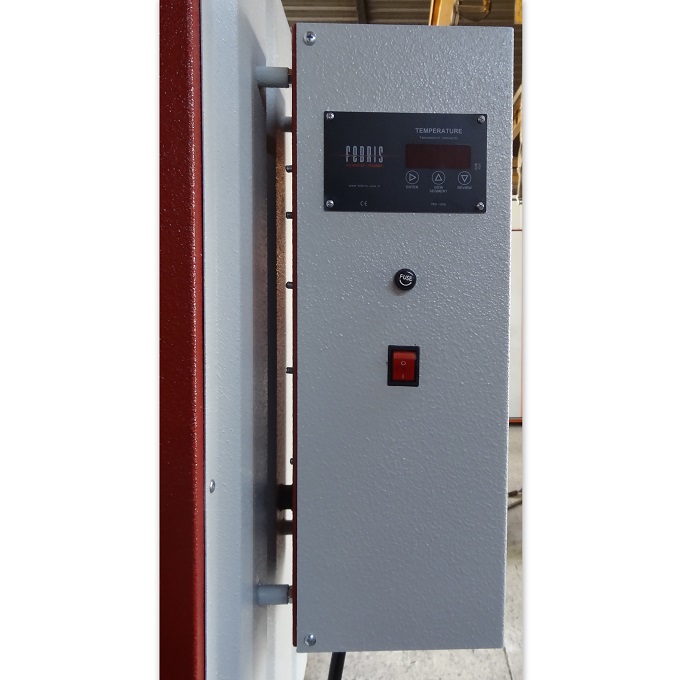

Temperature Control and
Programming Device		Febris TPD 3539 (4 programs, 8 steps)
Click on the link for optional control device		Febris TPD 8623 (6 programs, 8 steps)
Click on the link for optional control device
Temperature ControlSingle zone control (standard)
Multi-zone controlled (optional)		Single zone control (standard)
Multi-zone controlled (optional)
Power ControlContactor (standard)
SSR - Solid State Relay (optional)		Contactor (standard)
SSR - Solid State Relay (optional)
Heating surfaces
 Two side walls + base
Two side walls + base
Heating elements
 Spiral shaped heater elements, Kanthal A1 quality.
Spiral shaped heater elements, Kanthal A1 quality.
Heat insulation
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Cooling
Natural cooling with manual controlled chimneyNatural cooling with manual controlled chimney
DoorManual / with manpowerManual / with manpower
Main body
Welded steel constructionWelded steel construction
ColorIndustrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.		Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.
Electrical connection
Single Phase + Neutral + Ground (up to 5.5 kW)
Three Phase + Neutral + Ground (above 5.5 kW)
Single Phase + Neutral + Ground (up to 5.5 kW)
Three Phase + Neutral + Ground (above 5.5 kW)
Electrical Cable
All models are delivered with CE norm plug and cable.All models are delivered with CE norm plug and cable.
SecurityOptionally, when the kiln door is open, a power switch switches off the energy of the heating elements.Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
For the selection of different temperature control equipment, please vised the "temperature controllers" tab.
Any changes in the control device of the furnace is reflected to the price.

Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...


Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies
The following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Ceramic School Group, Kilns, Price List of Standard Series Front Loading Electric Kilns.
Order Code
Volume

~V
Price
For 1200 ºC
[EURO]
Price
For 1300 ºC
[EURO]
ECFL 150
150 lt
2.150,-2.720,-
ECFL 200
200 lt
2.500,-2.970,-
ECFL 250
250 lt
2.650,-3.120,-
ECFL 300
300 lt
2.850,-3.270,-
ECFL Cust
according to the customer requirements.
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
