CERAMICS SCHOOL KILNS

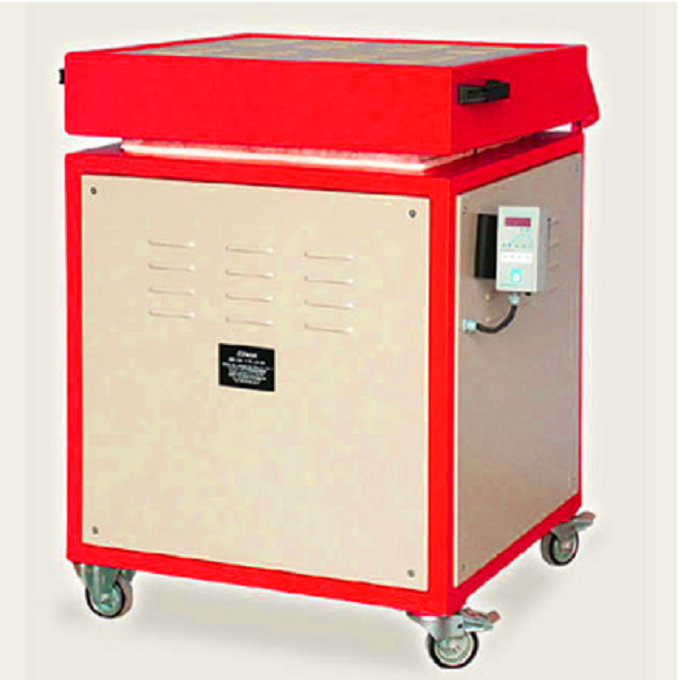

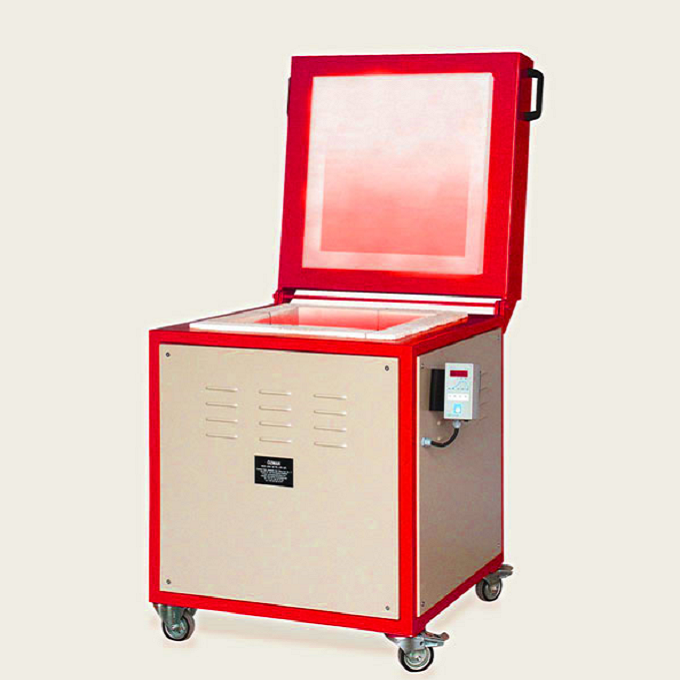

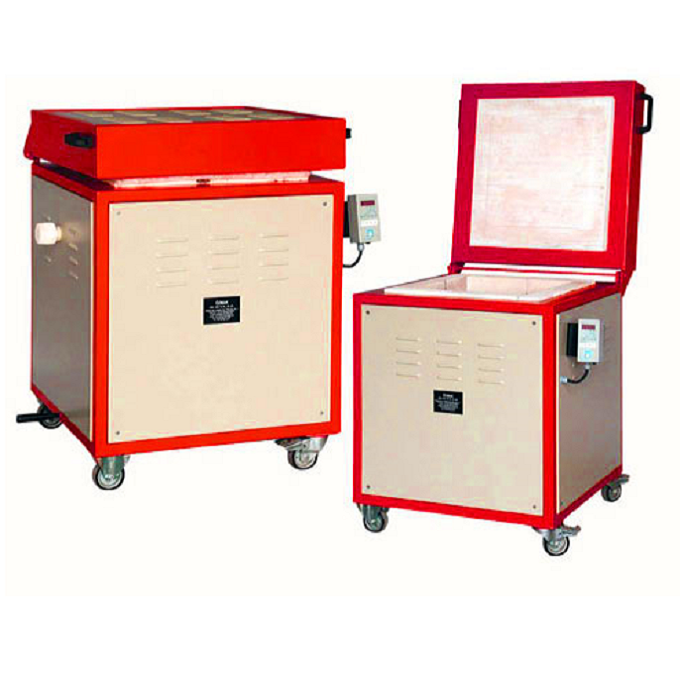

Top Loading Electric Kilns

It is suitable for those who will use the kiln for the first time and it is also suitable for the beginners in ceramic and porcelain production.

All top-loading electric kilns up to 5.5 kW can be used with household electricity, and all connections are installed to suit the infrastructure of your home.

Our top loading electrical ceramic kilns are offered with two different temperature alternatives, which are 1100 ºC or 1300 ºC depending on ceramic and porcelain applications.

In school group, top loading electrical ceramic kilns are offered up to 100 lt capacities. For the capacity bigger than 100 lt, please contact with the company.

All our electric ceramic kilns with top loading are manufectured with wheel as standards, therefore its mobility is better than front-loading kilns.
Ceramic School Group, Top Loading Electric Kilns
Order Code
Volume

~V		Internal Dimensions

~(W x D x H)
Outer Dimensions

~(W x D x H)
Power
For 1100 ºC
~kW
Power
For 1300 ºC
~kW
ECFL 5050 lt
37 x 37 x 37 cm
73 x 73 x 73 cm
3.5 kW
4.0 kW
ECFL 64
64 lt
40 x 40 x 40 cm
76 x 76 x 83 cm
4.0 kW
5.0 kW
ECFL 8080 lt
40 x 40 x 50 cm
76 x 76 x 93 cm
5.0 kW6.0 kW
ECFL 100
100 lt
45 x 45 x50 cm
81 x 81 x 93 cm
6.0 kW
7.5 kW
ECFL Cust
according to the customer requirements
...
Ceramic School Group, Technical Specifications of Top Loading Electric Kilns
Area of use /
Application area
Firing biscuits, glaze and decor
in ceramic, pottery and tile production
Firing biscuits, glaze and decor
in  porcelain, ceramic, pottery and tile production.
Max. temperature
1100ºC
1300ºC
Temperature sensor typeK Tipi (NiCr-Ni)
S Tipi (PtRh-Pt)
Temperature Control* and
Programming Device		Febris TPD 3539 (4 programs, 8 steps)
Click on the link for optional control device		Febris TPD 8623(6 programs, 8 steps)
Click on the link for optional control device
Temperature ControlSingle zone control (standard)
Multi-zone controlled (optional)		Single zone control (standard)
Multi-zone controlled (optional)
Power ControlContactor (standard)
SSR - Solid State Relay (optional)		Contactor (standard)
SSR - Solid State Relay (optional)
Heating surfaces
 Two side walls + base
Two side walls + base
Heating elements
 Spiral shaped heater elements, Kanthal A1 quality.
Spiral shaped heater elements, Kanthal A1 quality.
Heat insulation
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Heating surfaces with light refractory bricks,
Other surfaces are made of ceramic fiber Z Block
Cooling
Natural cooling with manual controlled chimneyNatural cooling with manual controlled chimney
DoorManual / with manpowerManual / with manpower
Main body
Welded steel constructionWelded steel construction
Color**Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.		Industrial rapid paint,
Beige (RAL-7035) + Red (RAL-3001)
For different colors, please contact with company.
Electrical connection
Single Phase + Neutral + Ground (up to 4.5 kW)
Three Phase + Neutral + Ground (above 4.5 kW)
Single Phase + Neutral + Ground (up to 4.5 kW)
Three Phase + Neutral + Ground (above 4.5 kW)
Electrical cableAll models are delivered with CE norm plug and cable. All models are delivered with CE norm plug and cable.
SecurityOptionally, when the kiln door is open, a power switch switches off the energy of the heating elements.Optionally, when the kiln door is open, a power switch switches off the energy of the heating elements.
 PortabilityAll top-loading electric furnaces of this series are manufactured with wheel as standard.All top-loading electric furnaces of this series are manufactured with wheel as standard.

All top-loading electric kilns up to 4.5 kW can be used with household electricity.

*For the selection of different temperature control equipment, please vised the "temperature controllers" tab. Any changes in the control device of the furnace is reflected to the price.

**Different colors can be selected from the colors of our company's stocks. In this case, the change in the color does not affect the price of the kiln. In the case of choosing the colors which are not in the stock of company, the color that is requested by the customer should be provided by customer itself.
...
Kiln Operating Materials
Cordierite plates are used as auxiliary equipment in the kilns.
If requested, the prices of cordierite plates will be added to offer separately.

Standard Cordierite Plates and Supports
Cordierite Plate I: 370 mm x 370 mm x 15 mm
Cordierite Plate II: 400 mm x 400 mm x 15 mm
Cordierite Plate III: 400 mm x 500 mm x 15 mm
Support: 110 mm x 65 mm x 55 mm

Maintenance and Repair Supplies
The following maintenance and repair materials are available upon request.
Ceramic fiber adhesive,
Brick adhesive,
Resistance wire (Kanthal A1)
Ceramic School Group, Price List of Top Loading Electric Kilns.
Order Code
 Volume

~V
Price
For 1100 ºC
[EURO]
Price
For 1300 ºC
[EURO]
ECFL 5050 lt
1.630,-
1.990,-
ECFL 64
64 lt
1.690,-
2.080,-
ECFL 8080 lt
1.800,-
2.200,-
ECFL 100
100 lt
1.970,-2.370,-
ECFL Custaccording to the customer requirements
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
