CERAMICS STUDIO KILNS

Raku Kilns | Gas

It is designed for firing different sizes and shapes of materials in small amount. The maximum available temperature is 1100 °C.

Raku kilns can work with any of three different types of fuel; LPG, propane and natural gas. Fuel type should be determined at the demand stage, before production of kiln.

Raku kilns are widely used in 90 lt, 150 lt, 250 lt, and 375 lt capacities.For different capacities, please contact with company.
Ceramic Studio Group, Raku Kilns |Gas
Order Code
 Volume
~V
Internal Dimension
~(Ø x h)
Number of Burner
CGK/SRK 09090 lt45 x 55 cm1
CGK/SRK 150150 lt55 x 65 cm1
CGK/SRK 250250 lt65 x 75 cm2
CGK/SRK 375375 lt75 x 85 cm2
CGK/SRK Custaccording to the customer requirements.
...
Ceramic Studio Group, Technical Specification of Raku Gas Kilns
Area of use /
Application area		Ceramic firing with Raku technique.
Max. temperature 1200 ºC

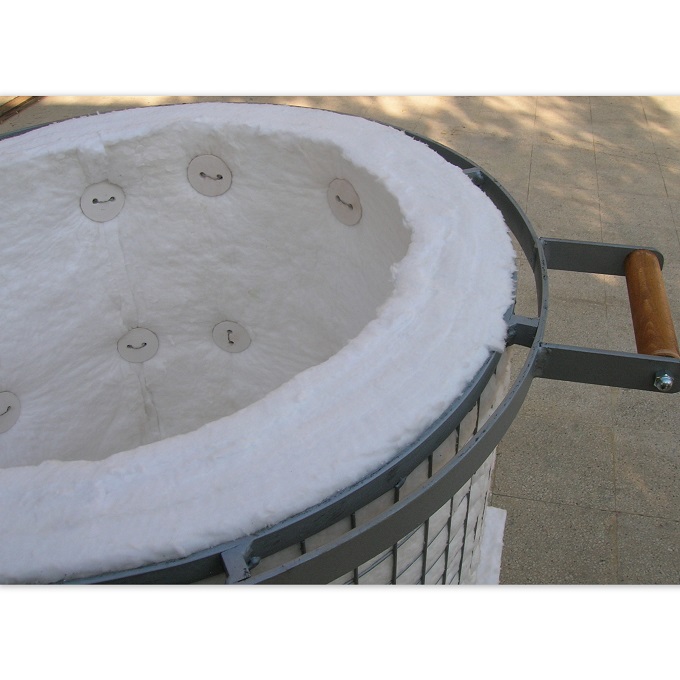

Heat insulation
with light refractory bricks (at the bottom of the kilns)
Ceramic fiber Z Block (all other surface)
Burner type
With low emission atmospheric burner.
Kiln AtmosphereOxidative - Neutral (standard)
Door / lid
Manual / with man power
Main body
Welded steel construction
Opsiyonel olarak farklı sıcaklık kontrol cihazlarının seçimi için lütfen kontrol cihazları sekmesine bakınız.
Kontrol cihazlarında yapılacak değişiklikler fırın fiyatına yansıtılır.

Ceramic Studio Group, Price List of Raku Gas Kilns
Order Code
Volume

~V		Price

[EURO]
CGK/SRK 09090 lt
1.250,-
CGK/SRK 150
150 lt
1.512,-
CGK/SRK 250250 lt
1.912,-
CGK/SRK 375
375 lt
2.475,-
 CGK/SRK Cust
according to the customer requirements.
Terms of Payment
All prices are ex-factory.
VAT is not included in the prices.
Optional choices are not included in the prices
Other payments such as transportation and customs are not included in the prices.
Half of the total order price is received in advance before the production of the kiln.

Delivery Condition
Our products are delivered from our workplace address.

Warranty
The warranty period is 2 (two) years.
Faults caused by user or transportation are not covered by the warranty.
...
